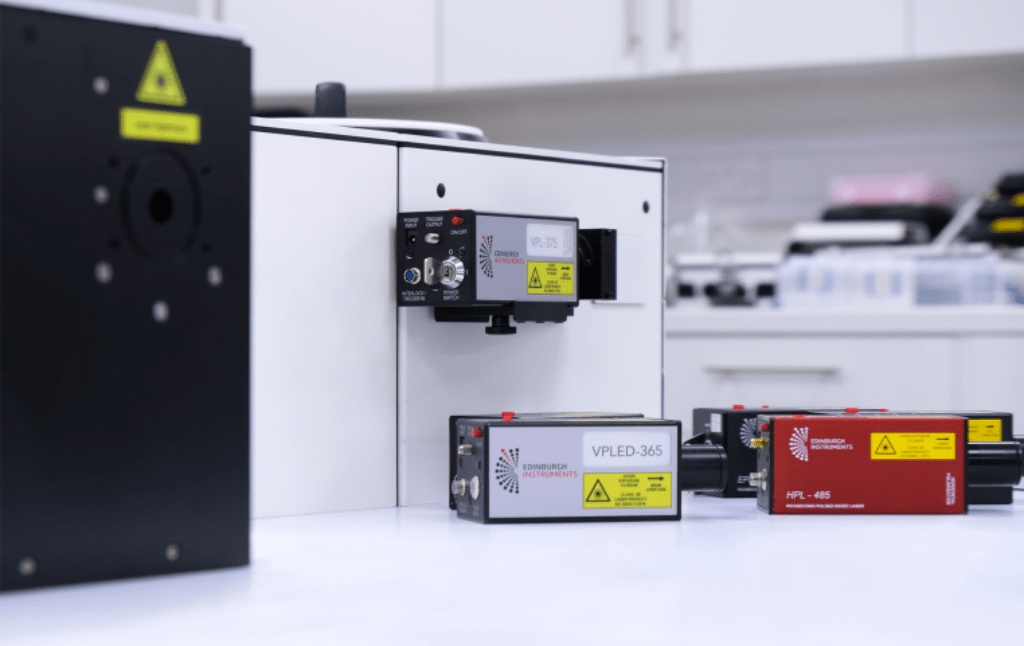

Fig 1. Edinburgh Instruments light sources
The HPL diode lasers are designed for time-Correlated Single Photon Counting (TCSPC) from picoseconds to microseconds and are fully compatible with Edinburgh Instruments systems. They are the perfect choice for challenging samples with low brightness, thanks to their high repetition rates up to 80 MHz and high-power output mode.
For longer decay times, the VPL and VPLED series may be used. The pulse width of these sources can be varied from 50 ns up to 1 ms so they are ideal for Multi-Channel Scaling (MCS) measurements, providing higher pulse energies than picosecond lasers and LEDs.
Fig 2. AGILE picosecond pulsed light source
AGILE is a white-light picosecond pulsed laser available as a TCSPC source in the FLS1000 Photoluminescence Spectrometer. Coupled to the excitation monochromator in the FLS1000, its output wavelength can be tuned from <400 nm up to >2,000 nm removing the need for multiple monochromatic sources.
Roger Fenske, CEO, says “We are excited to expand our portfolio with this new range of pulsed light sources. This will help meet the ongoing requirements of our customers and will bring added capability and functionality to their work procedures.”
Explore our new Light Sources.
