Scientific Cameras

We offer a wide range of Edmund Optics analog or digital Cameras designed for a variety of imaging applications, including video microscopy or industrial use. Digital Cameras are available with a variety of digital interfaces, such as USB 2.0, USB 3.0, USB, 3.1, and USB-C; FireWire.a, FireWire.b; Gigabit Ethernet (GigE), Power over Ethernet (PoE), CoaXpress (CXP), or Camera Link® to ensure maximum compatibility with any number of applications’ needs. A selection of camera accessories is also available including mounting adapters, capture cards, and cables.

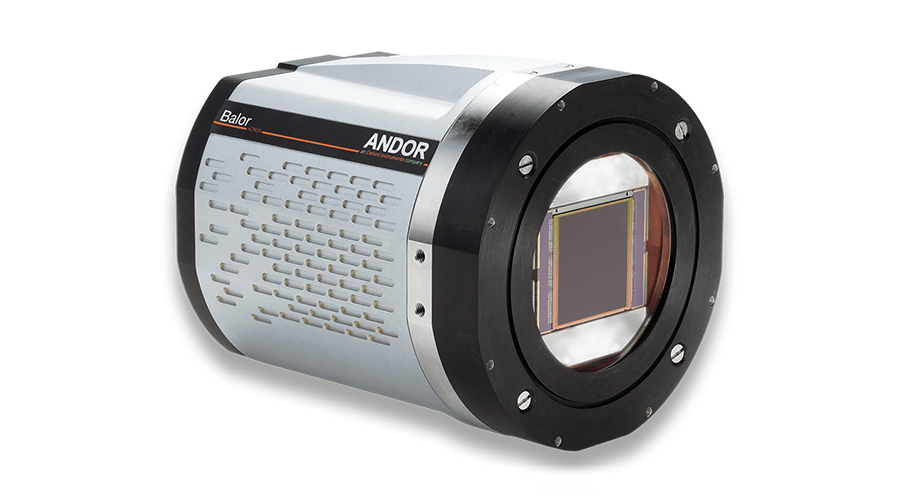

Andor’s Scientific CMOS (sCMOS) cameras series deliver an advanced set of performance features that render them ideal for high fidelity, quantitative scientific measurements. Providing a wide gamut of application advantages across the physical sciences and astronomy, the multi-megapixel cameras offer a large field of view and high resolution, without compromising noise, dynamic range or frame rate.

With the single photon sensitive iXon Ultra EMCCD cameras, Andor have delivered a dedicated, truly high-end, yet accessible scientific camera platform, designed specifically to drive the absolute best from ultra-sensitive EMCCD technology across all critical performance specs and parameters.

Andor offers a portfolio of deep cooled, back-illuminated CCD cameras, spanning a range of field of view requirements and offering optimized response across a very broad spectral range.

The iStar family features a range of high resolution sensors for the sharpest images and spectral signatures acquisition, while maintaining the highest dynamic range.

It uses a fiber-coupling arrangement to the image intensifiers for maximum collection efficiency, unlike lens-coupled configurations that would suffer from lower throughput, image vignetting and distortion.

Andor’s portfolio of CCD, sCMOS and EMCCD cameras provide a wide range of high sensitivity, high dynamic range and fast detection solutions for table-top laboratory and beamline experiments. These detectors benefit especially applications in the field of EUV, X-ray, neutron or electron detection for material science, plasma studies, bio-samples analysis or beam/source characterisation.

Andor’s product portfolio incorporates a range of high-performance detector solutions for Astronomy, from faster time resolution sCMOS and EMCCD cameras to slow scan CCDs. Across each technology category, low noise floor and back-illuminated QE options are common, as are very large area sensor solutions for maximum sky coverage.

With the iXon EMCCD microscope cameras, Andor have delivered a dedicated, truly high-end, yet accessible ultrasensitive scientific camera platform, designed specifically to drive the absolute best from EMCCD technology across all critical performance specs and parameters.

Andor’s Scientific CMOS (sCMOS) cameras series deliver an advanced set of performance features that render them ideal for high fidelity, quantitative scientific measurements. Providing a wide gamut of application advantages across the biological sciences, the multi-megapixel cameras offer a large field of view and high resolution, without compromising read noise, dynamic range or frame rate.

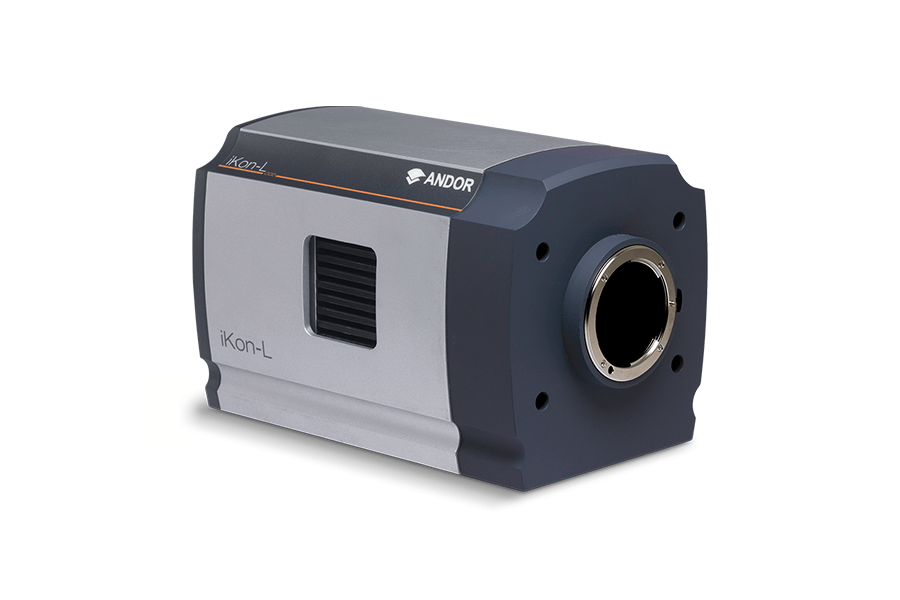

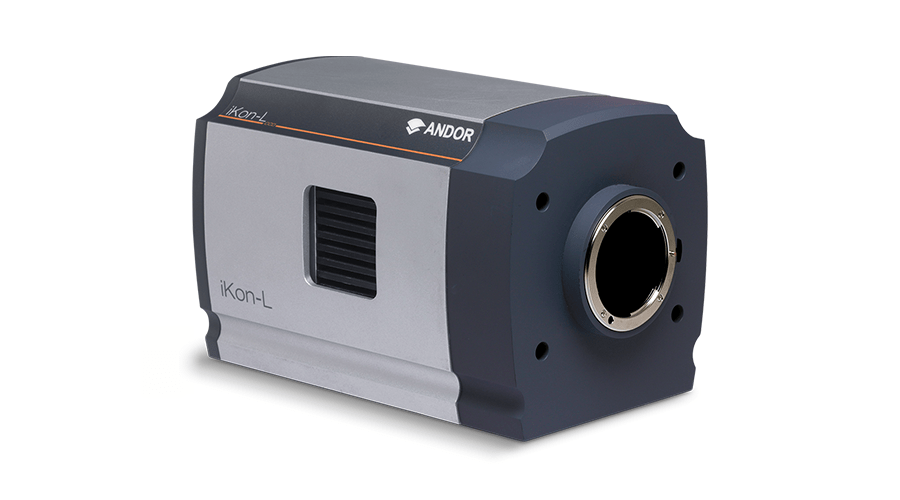

The iKon ‘slow scan’ CCD camera series features unique thermoelectric cooling to -100°C for industry-leading low noise performance coupled with highly efficient back-illuminated photon collection across a broad spectral range, and exceptional dynamic range. The iKon series is aimed at applications such as plant imaging or in vivo luminescence experiments that require exposure durations of minutes, or even hours.
